Cylinder Barrels are one of the most critical components in hydraulic and industrial machinery. They form the main body of a hydraulic cylinder, housing the piston and hydraulic fluid, and enabling controlled linear motion. Their design, material quality, and internal finish directly influence system performance, efficiency, and durability. Role in Hydraulic Systems, Cylinder barrels are fundamental to how hydraulic systems operate. When hydraulic fluid is pumped into the barrel, pressure builds up and forces the piston to move, generating mechanical force.

WHAT IS A CYLINDER BARREL?

A cylinder Barrel is a precision-machined tube, typically made from high-strength steel, designed to withstand high internal pressure. It serves as the enclosure in which the piston moves back and forth under hydraulic force. A Cylinder Barrel is the core structure of a hydraulic cylinder, responsible for containing pressure and enabling controlled motion—making it essential for powering heavy-duty industrial operations.

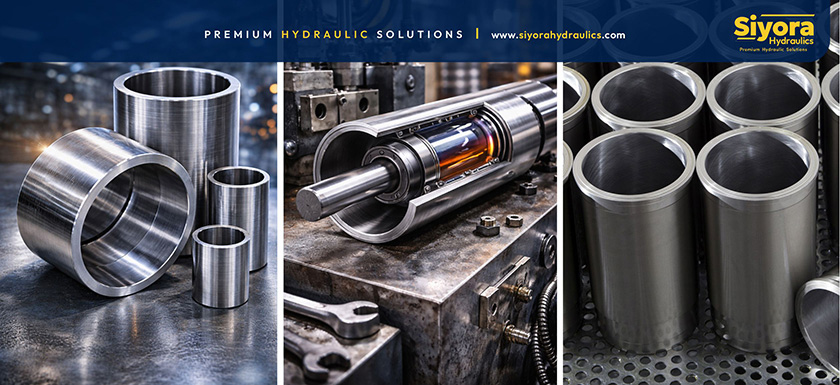

cylinder barrel

Cylinder Barrels are the backbone of hydraulic and industrial systems. Their precision engineering, strength, and surface quality directly impact system efficiency, reliability, and longevity. Whether in heavy construction, manufacturing, or automation, high-quality cylinder barrels ensure smooth operation and consistent performance under demanding conditions. Investing in well-manufactured cylinder barrels is essential for achieving optimal productivity and minimizing downtime in industrial applications.

A Cylinder Barrel is a precision-engineered metal tube in which a piston moves back and forth to produce linear motion in hydraulic and industrial systems.

TYPES OF CYLINDER BARRELS

Honed Cylinder Barrels

• Finished with a honing process
• Smooth internal surface
• Ideal for high-performance hydraulic systems

Skived and Roller Burnished Barrels

• Faster production method
• Suitable for large-scale industrial use

Seamless Cylinder Barrels

• No weld joints
• Higher strength and reliability

Welded Cylinder Barrels

• Cost-effectives
• Used in less demanding applications

APPLICATIONS IN INDUSTRIAL SYSTEMS

• Construction Equipment - Excavators, loaders, and cranes rely on hydraulic cylinders for lifting and movement
• Manufacturing & Automation – Used in presses, robotic systems, and automated machinery
• Oil & Gas Industry – Operate in high-pressure and extreme conditions
• Agricultural Machinery – Tractors, harvesters, and other equipment depend on hydraulic motion control
• Material Handling – Forklifts and lifting systems use hydraulic cylinders for precision movement

KEY FEATURES OF CYLINDER BARRELS

• Compatibility with Sealing Systems

Designed to work efficiently with seals to prevent leakage and maintain consistent pressure.

• High Strength and Durability

Manufactured from robust materials such as carbon steel or alloy steel, barrels are built to handle high pressure and heavy loads.

• Precision Inner Surface

Cylinder barrels often undergo honing to achieve a smooth internal finish. This reduces friction and ensures efficient piston movement.

• Tight Dimensional Tolerances

Accurate inner diameter and roundness ensure proper sealing and alignment of internal components.

• Corrosion and Wear Resistance

Surface treatments and coatings improve resistance to rust, abrasion, and harsh environments.
